Universal and Surface Grinders Safety Guard

Description

Description of the Universal and Surface Grinder Safety Guard

Protects the operator from direct contact with rotating parts of the grindstone and from the projection of lubricant-coolant. Attachable to the machine using a solid inclined metal sheet, also used for liquid collection.

Equipped with a sliding door made in thick shockproof plastic material, sliding on steel guides and positioned externally. Complete with safety microswitch.

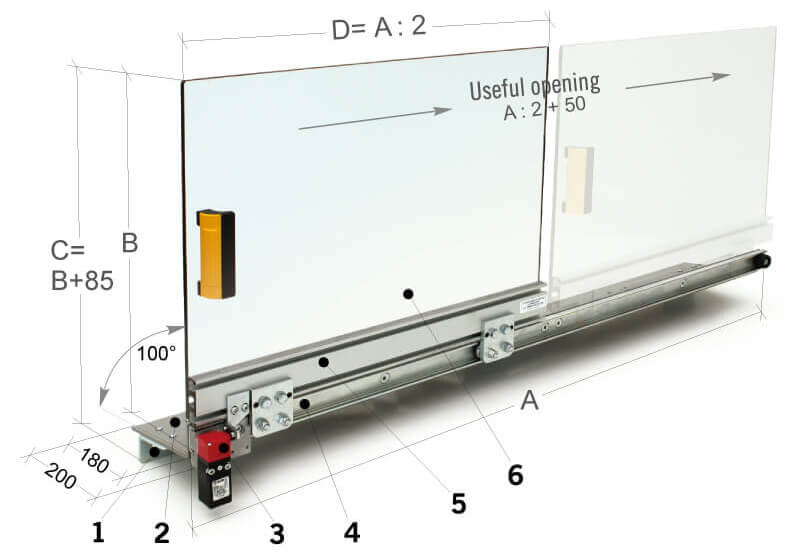

1. Angular anchorage stirrups
2. Inclined support sheet metal - in sheet steel
3. Safety microswitch with separated actuator with n.2 NC contacts - electrically interlocked
4. Steel sliding guide with tempered bearings
5. Shield support structure - in aluminum profile
6. Shield in shockproof and oil-resistant thick plastic material

Safety Guard's Technical Specifications

CODE	Name	A	B
MST-RE01/650	Universal and Surface Grinders Safety Guard/650	1200 mm 47 1/4"	500 mm 19 11/16"
MST-RE01/860	Universal and Surface Grinders Safety Guard/860	1600 mm 62 63/64"	600 mm 23 5/8"
