The MST-TO04 is a lathe chuck safety guard specifically engineered for large-diameter lathes (up to 1200 mm). Remarkably strong and durable, it protects the operator with an interlocked foldable shield that can cover the work area either partially or completely. The system prevents direct contact with the rotating chuck and helps contain lubricants, coolants, and swarf, ensuring a safer and cleaner work environment. Equipped with dual safety microswitches, it offers both high visibility and easy access.
** To choose the right model, calculate your lathe’s swing overbed (M1 × 2) using the Legend image. **
Specially designed for heavy-duty and large-capacity lathes, the MST-TO04 provides reliable protection against direct contact with the rotating chuck as well as from chips, working swarfs and coolant projections.
The robust support structure, fully adjustable on two axes (X and Y), allows easy anchoring at the rear of the machine, or at the front if required.
Its dual interlocked safety microswitch system prevents the lathe from starting unless the shield is fully closed, guaranteeing compliance with international standards OSHA, ANSI, ISO-EN, and CE.
The semi-circular aluminum shield is divided into two sections, allowing either partial opening (front section only) or full opening depending on the operation. The shield can also be completely folded back and locked on its axis, clearing the workspace for adjustments or maintenance.
This ergonomic design ensures an ideal balance between safety, visibility, and operator accessibility.
To select the appropriate MST-TO04 model for your lathe:
| M1 × 2 (Swing overbed) | Selection | Width options | |
|---|---|---|---|
| SKU Code | Name | ||
| 625 mm to 800 mm (24 39/64" – 31 1/2") | MST-TO04/080 | Lathe Chuck Safety Guard/080 | 300 mm (11 13/16") |
| 825 mm to 1000 mm (32 31/64" – 39 3/8") | MST-TO04/100 | Lathe Chuck Safety Guard/100 | 350 mm (13 25/32") |
| 1025 mm to 1200 mm (40 23/64" – 47 1/4") | MST-TO04/120 | Lathe Chuck Safety Guard/120 | 350 mm (13 25/32") |

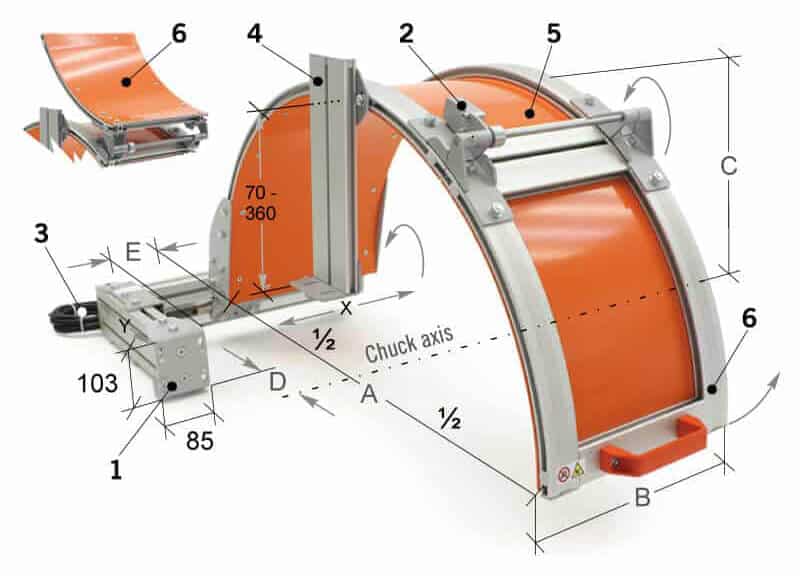

| CODE | Name | A | B | C | D | E |
|---|---|---|---|---|---|---|
| MST-TO04/080 | Lathe Chuck Safety Guard/080 | 800 mm 31 1/2" |
300 mm 11 13/16" |
400 mm 15 3/4" |
165 – 375 mm 6 1/2" – 14 49/64" |
5 – 120 mm 13/64" – 4 23/32" |
| MST-TO04/100 | Lathe Chuck Safety Guard/100 | 1000 mm 39 3/8" |
350 mm 13 25/32" |
500 mm 19 11/16" |
265 – 475 mm 10 7/16" – 18 45/64" |
5 – 70 mm 0 13/64" – 2 3/4" |
| MST-TO04/120 | Lathe Chuck Safety Guard/120 | 1200 mm 47 1/4" |
350 mm 13 25/32" |
600 mm 23 5/8" |
365 – 575 mm 14 3/8" – 22 41/64" |
5 – 70 mm 0 13/64" – 2 3/4" |
It protects the operator from direct contact with large-diameter chucks and shields against chips, coolant, and lubricants, while maintaining good visibility and easy access.
When the shield is lifted or opened, the dual safety microswitch system immediately cuts off power to the lathe, preventing accidental start-up.
Yes. The shield is divided into two sections: you can open only the front section for minor adjustments or fully open it for complete access.
Yes. The MST-TO04 can be folded completely to the rear and locked, freeing the space around the chuck for adjustments or maintenance.
Yes. The MST-TO04 complies with OSHA, ANSI, ISO-EN, and CE standards.
