Universal and Surface Grinder Safety Guard

Description

Description of the Surface Grinder Safety guard

Protects the operator from direct contact with rotating parts of the grindstone and from the projection of lubricant-coolant. Attachable to the fixed base of the machine with two horizontally multi-adjustable supports, (point 2) that allow an anchorage of the guard from the bottom side (as shown) or frontally - the supports are also easily shortened if necessary. Equipped with two «total opening» sliding doors on ball guides, made in thick plastic material. Complete with double safety microswitch.

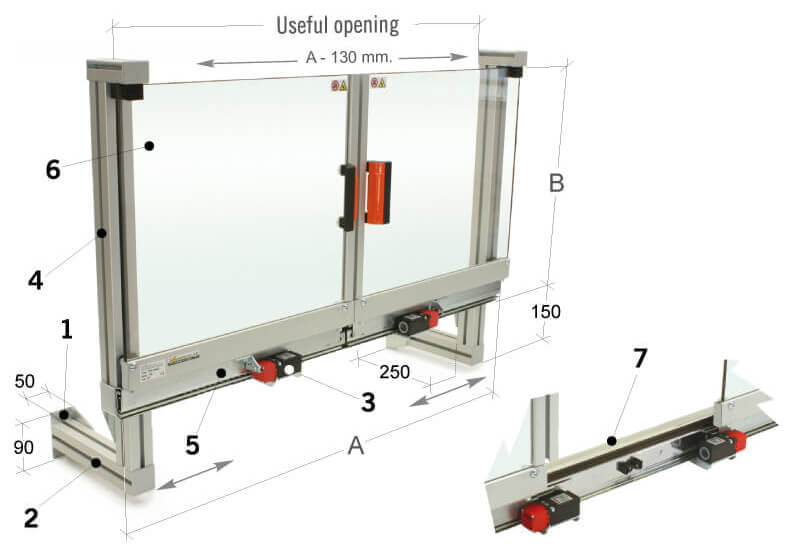

1. Angular anchorage stirrups - in pressed steel
2. Multi-adjustable support structure, with two different attachment systems
3. Safety microswitch with separated actuator - n.2 NC contactselectrically interlocked
4. Perimeter structure - in aluminum profile
5. Sliding ball guides, with an excursion equal to their length
6. Shields in shockproof and oil-resistant thick plastic material
7. Inner inclined structure for lubricant liquid collection - in aluminum sheet

Safety Guard's Technical Specifications

CODE	Name	A	B
MST-RE10/550	Universal and Surface Grinder Safety Guard/550	1000 mm 39 3/8"	510 mm 20 5/64"
MST-RE10/655	Universal and Surface Grinder Safety Guard/655	1200 mm 47 1/4"	560 mm 22 3/64"
MST-RE10/860	Universal and Surface Grinder Safety Guard/860	1600 mm 63"	660 mm 25 63/64"
