Key Facts :Hand or foot operation · Multiple adjustments · Single or double interlock · Robust construction · OSHA / ANSI / ISO-EN / CE compliant
The MST-BS01 / MST-BS02 safety bar is a robust and versatile device designed for machine Start/Stop control, emergency stop activation, and operator protection across a wide range of industrial equipment. It can be operated by hand or by foot, provides fast response in demanding workshop environments, and can be custom-built on request. Two models are available:
Thanks to its integrated interlocking system — single or double depending on the model — the bar directly contributes to machine compliance with international safety standards OSHA, ANSI, ISO-EN, and CE.
This multi-function, heavy-duty safety device includes several adjustment options and is suitable for many types of machines. Mounted directly on the machine it is protecting, it allows the operator to perform routine Start/Stop actions or activate an emergency stop in unexpected hazardous situations. A single microswitch is included on the MST-BS01 (assembled on the left housing), while the MST-BS02 is equipped with a dual safety microswitch. This safety device is designed to be mounted near the ground for being operated with feet (typical emergency function), or in raised position.
Interlocking is a safety mechanism that prevents a machine from starting or immediately stops it if the safety bar is not in a safe position. Depending on the model, the bar integrates 1 safety microswitch (BS01), or 2 safety microswitches (BS02) to reliably monitor its closed or safe position.
The MST-BS01 / MST-BS02 safety bars are fully compliant with major international machine-safety standards:
OSHA, ANSI, ISO-EN, CE. They help prevent unintended restarts, improve operator protection and ensure compliance with modern industrial safety regulations.

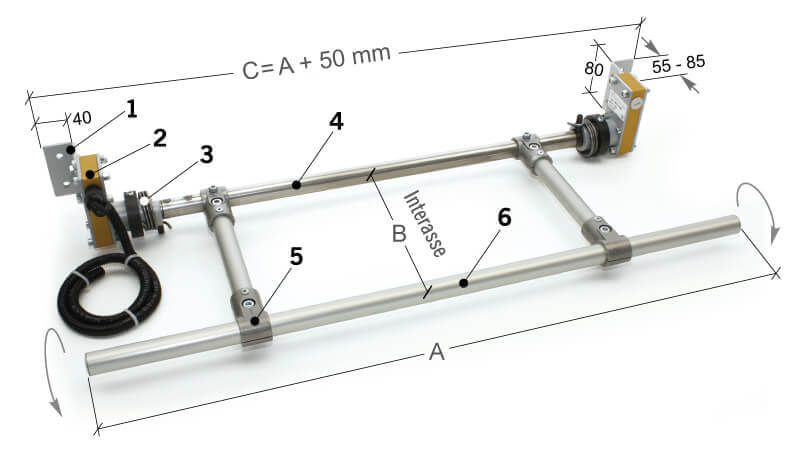

| CODE | Name | A | B | Number of Safety Microswitches |
|---|---|---|---|---|
| MST-BS01/080 | Safety bar for various machines/080 | 800 mm 31 1/2" |
250 mm 9 27/32" |
1 |
| MST-BS01/120 | Safety bar for various machines/120 | 1200 mm 47 1/4" |
250 mm 9 27/32" |
1 |
| MST-BS02/120 | Safety bar for various machines with double safety microswitch/120 | 1200 mm 47 1/4" |
250 mm 9 27/32" |
2 |
Before each use, inspect the bar for signs of wear, deformation, or abnormal behaviour. Cleaning and maintenance must be performed only by trained personnel and only when the machine is completely stopped. Clean the bar regularly to ensure reliable activation and maintain optimal visibility of the work area.
General machine operations: routine Start/Stop, foot activation, quick interventions, and emergency stop functions.
Yes. The bar can be activated by hand or foot depending on its installation.
Yes.
Yes. Both models meet major international machine-safety standards.
No. When installed properly, the bar operates safely without risk of damage.
Special order : may incur an extended delivery time.
