Price range: USD $374.50 through USD $470.58
The MST-T001 is a classic electrically interlocked lathe chuck safety guard built with a sturdy steel frame and a shock and oil-resistant shield. Available in various dimensions, it is the only model designed to be positioned directly near the machine head, ensuring maximum operator protection. Its integrated electrical interlock system automatically cuts off power to the lathe as soon as the shield is lifted, guaranteeing compliance with international safety standards.
** To choose the right model, measure the swing overbed (M1 x 2) and the shield width. Refer to the Legend image on the right and select the size that fits your lathe. **
The MST-T001 combines robustness, ergonomics, and safety by protecting the operator from direct contact with the upper part of the chuck lathe as well as from lubricant and coolant projections. It is frontally and laterally fixed to the lathe base, ensuring rock-solid stability even during intensive operations.
Its semi-circular, adjustable shield can be positioned very close to the machine head, minimizing uncovered areas and improving operator safety. Thanks to its integrated safety microswitch, the lathe’s power supply is immediately interrupted whenever the shield is lifted, preventing accidental and dangerous spindle rotation.
Available in several sizes, the MST-T001 adapts to different chuck diameters. Each model provides maximum visibility, quick installation, and compliance with OSHA, ANSI, ISO-EN, and CE standards.
Contact arrangement: 2NC
Switching ability: 4A @24V AC
4A @120 DC, .3A @250 V DC
Mechanical life: 1 million switching cycles
Enclosure rating: IP 67
This product meets OSHA, ANSI, ISO-EN, and CE standards. It is electrically interlocked for maximum safety.
| M1 × 2 (Swing overbed) | Selection | Width Options | |
|---|---|---|---|
| SKU Code | Name | ||
| Up to 300 mm (11 13/16″) | MST-TO 01/300/MEU | Lathe Chuck Safety Guard/300/MEU | 170 mm (6 11/16″) |
| MST-TO 01/300 | Lathe Chuck Safety Guard/300 | 200 mm (7 7/8″) | |
| 325 to 400 mm (12 51/64″–15 3/4″) | MST-TO 01/400/MEU | Lathe Chuck Safety Guard/400/MEU | 170 mm (6 11/16″) |
| MST-TO 01/400 | Lathe Chuck Safety Guard/400 | 235 mm (9 1/4″) | |
| 425 to 500 mm (16 47/64″–19 11/16″) | MST-TO 01/500/MEU | Lathe Chuck Safety Guard/500/MEU | 170 mm (6 11/16″) |
| MST-TO 01/500 | Lathe Chuck Safety Guard/500 | 235 mm (9 1/4″) | |
| 525 to 600 mm (20 43/64″–23 5/8″) | MST-TO 01/600 | Lathe Chuck Safety Guard/600 | 235 mm (9 1/4″) |

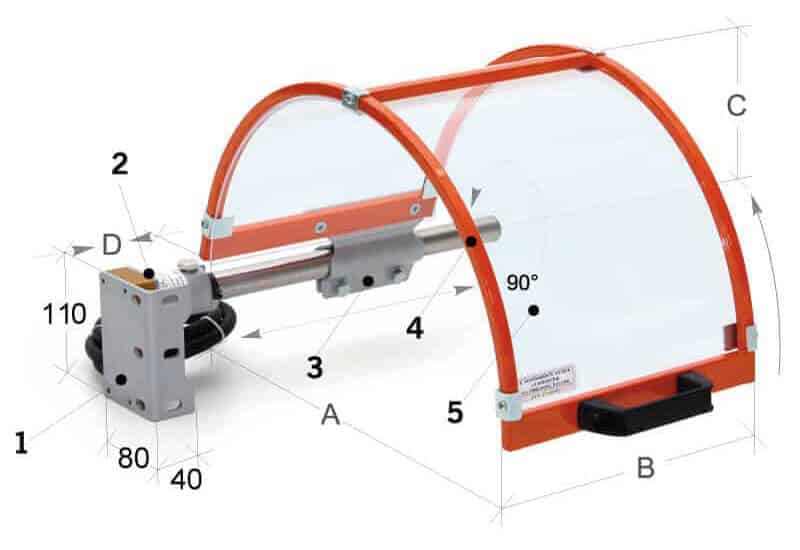

| SKU CODE | Name | A | B | C | D | Spare Shield |
|---|---|---|---|---|---|---|
| MST-TO 01/300 | Lathe Chuck Safety Guard/300 | 300 mm 11 13/16″ |
200 mm 7 7/8″ |
180 mm 7 3/32″ |
0–215 mm 0–8 15/32″ |
MST-TO01/300/SS |
| MST-TO 01/400 | Lathe Chuck Safety Guard/400 | 400 mm 15 3/4″ |
235 mm 9 1/4″ |
230 mm 9 1/16″ |
0–150 mm 0–5 29/32″ |
MST-TO01/400/SS |
| MST-TO 01/500 | Lathe Chuck Safety Guard/500 | 500 mm 19 11/16″ |
235 mm 9 1/4″ |
280 mm 11 1/32″ |
0–150 mm 0–5 29/32″ |
MST-TO01/500/SS |
| MST-TO 01/600 | Lathe Chuck Safety Guard/600 | 600 mm 23 5/8″ |
235 mm 9 1/4″ |
330 mm 12 63/64″ |
0–150 mm 0–5 29/32″ |
MST-TO01/600/SS |
The MST-T001 is a classic semi-circular guard with a steel frame and clear shield. Its main distinction is that it can be installed very close to the chuck, unlike other guards designed for different lathe zones.
The shield is equipped with a safety microswitch. When the shield is lifted, the lathe power supply is immediately cut off, preventing accidental chuck rotation. The MST-T001 complies with OSHA, ANSI, ISO-EN, and CE standards.
Yes. This guard can be installed on most conventional and CNC lathes, as long as the swing overbed capacity and dimensions are respected.
Yes. Prismont offers replacement shields for all MST-T001 models.
MST-TO01 Spare Shield
Yes. The MST-T001 fully meets OSHA, ANSI, ISO-EN, and CE requirements and features an interlocked design, ensuring compliance during safety audits.
Lead time to ship: 3 to 5 business days.
