Large Lathe Sliding Safety Guard

MST-TO21/22

USD $3,525.30USD $3,915.40

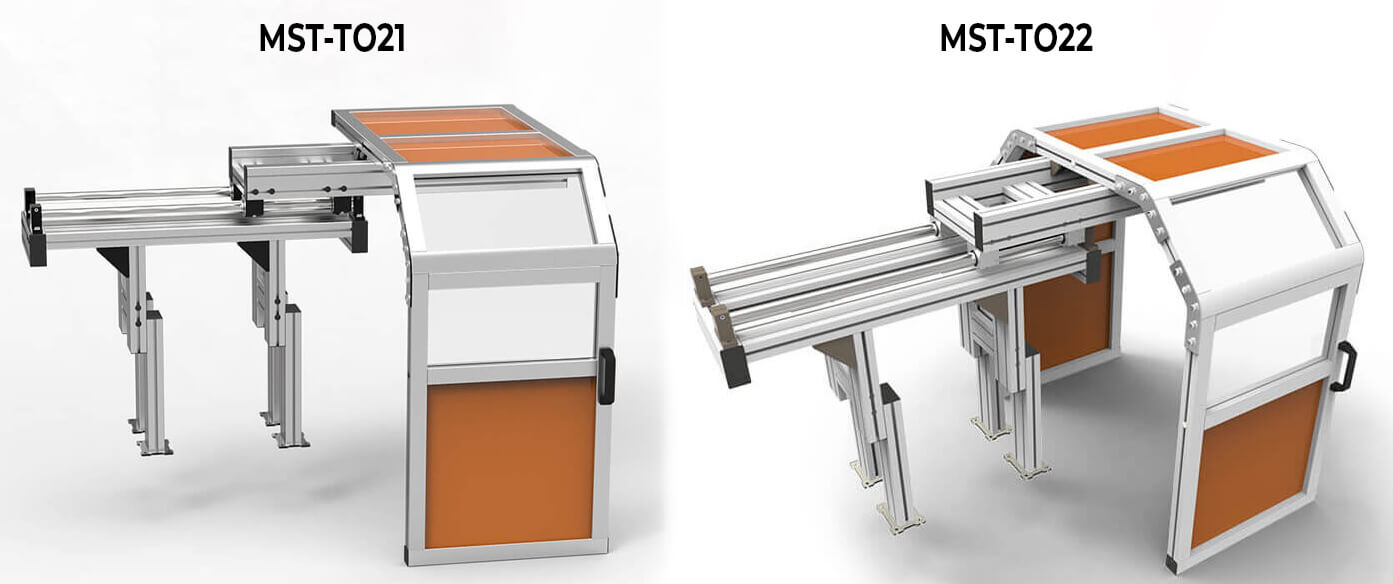

Sliding shield for large lathes, designed to be fixed on the machine head and on the ground, making the whole structure of the guard stable.The MST-TO22 model is double sided and safeguards both the front and rear of the machine. To calculate swing overbed, take a look at our Legend Image and calculate M1 x 2.
Measuring a Lathe - TO range - To calculate swing overbed, calculate M1 x 2.

Reset
Code SKU : MST-TO21/22 Categories ,
Share on print
PRINT TO PDF
Share on email
SEND BY EMAIL

Description

Description of the Large Lathe Sliding Safety Guard

Protects the operator from direct frontal contact with rotating components of the chuck and from projection of shavings and lubricant-coolant. The main feature is the sliding shield included in a solid and light aluminum structure, equipped with four anchorage points on the machine head, allowing to keep the shield in an overhanging position. The sliding shield has a wide visual manufactured with a special material, suitable to be used for safety guards. Complete with safety microswitch. The structure can be also customized for much bigger chucks.

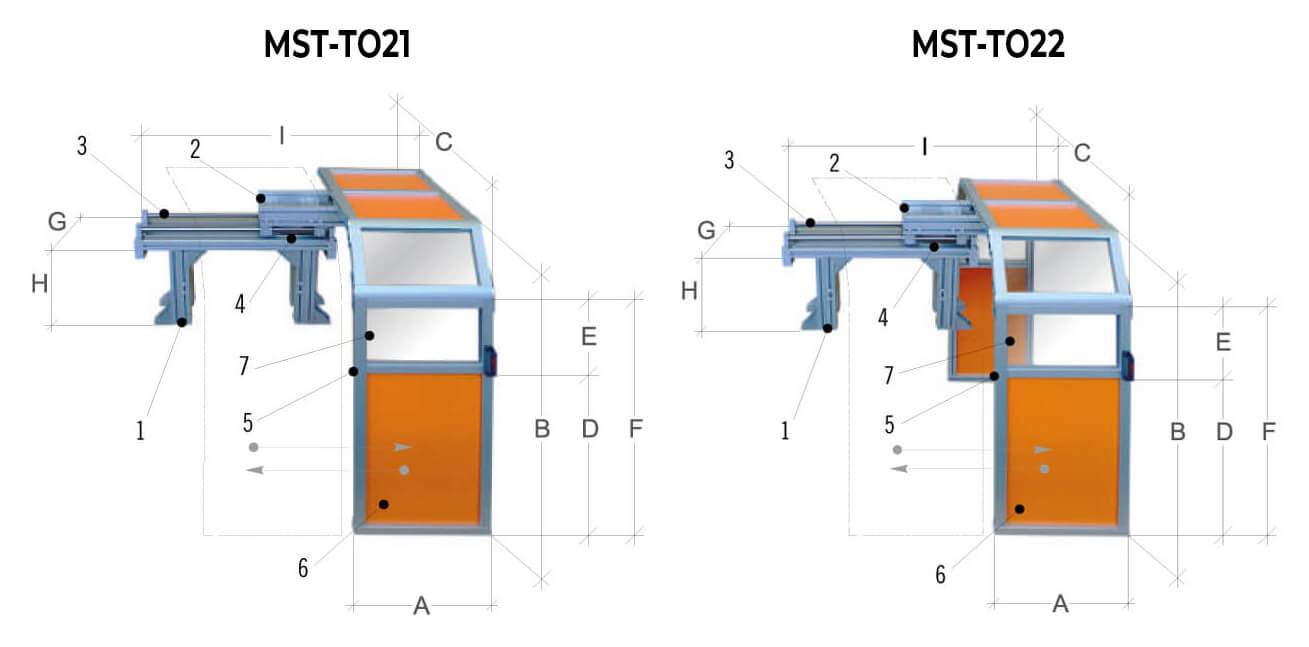

  1. Supporting structure with steel guides
  2. Sliding carriage with bearings
  3. Double steel guide for carriage sliding
  4. Interlocked microswitch
  5. Removable aluminum frame
  6. Steel-sheet protection panel
  7. Polycarbonate transparent protection shield
Ce produit satisfait aux normes OSHA, ANSI, ISO-EN et CE. Il est aussi interverrouillé

Choisir la bonne taille de protecteur

In order to choose the correct size for your lathe, you first need to determine which side of the machine needs to be safeguarded (front or both rear and front). Then, calculate the swing overbed. Please refer to our second image called Legend, and calculate M1 x 2. Refer to this table to choose the correct safety guard.

SideM1 x 2 (Swing overbed)SelectionWidth Options
SKU CodeName
Frontal625 mm to 800 mm (24 39/64″ – 31 1/2″)MST-TO21/080Large Lathe Sliding Safety Guard/080550 mm (21 21/32″)
800 mm to 1200 mm (31 1/2″ – 47 1/4″)MST-TO21/120Large Lathe Sliding Safety Guard/120550 mm (21 21/32″)
Double Sided625 mm to 800 mm (24 39/64″ – 31 1/2″)MST-TO22/080Large Lathe Double Sided Sliding Safety Guard/080550 mm (21 21/32″)
800 mm to 1200 mm (31 1/2″ – 47 1/4″)MST-TO22/120Large Lathe Double Sided Sliding Safety Guard/120550 mm (21 21/32″)

Safety Guard’s Technical Specifications

CODENameABCDEFGHI
MST-TO21/080Large Lathe Sliding Safety Guard/080550 mm
21 21/32″
1000 mm
39 3/8″
1000 mm
39 3/8″
518 mm
20 25/64″
282 mm
11 7/64″
800 mm
31 1/2″
300 mm
11 13/16″
390-590 mm
15 23/64″ – 23 15/64″
930-1490 mm
36 39/64″ – 58 21/32″
MST-TO21/120Large Lathe Sliding Safety Guard/120550 mm
21 21/32″
1500 mm
59 1/16″
1400 mm
55 1/8″
918 mm
36 9/64″
282 mm
11 7/64″
1200 mm
47 1/4″
300 mm
11 13/16″
390-590 mm
15 23/64″ – 23 15/64″
930-1490 mm
36 39/64″ – 58 21/32″
MST-TO22/080Large Lathe Double Sided Sliding Safety Guard/080550 mm
21 21/32″
1000 mm
39 3/8″
1000 mm
39 3/8″
518 mm
20 25/64″
282 mm
11 7/64″
800 mm
31 1/2″
300 mm
11 13/16″
390-590 mm
15 23/64″ – 23 15/64″
930-1490 mm
36 39/64″ – 58 21/32″
MST-TO22/120Large Lathe Double Sided Sliding Safety Guard/120550 mm
21 21/32″
1500 mm
59 1/16″
1400 mm
55 1/8″
918 mm
36 9/64″
282 mm
11 7/64″
1200 mm
47 1/4″
300 mm
11 13/16″
390-590 mm
15 23/64″ – 23 15/64″
930-1490 mm
36 39/64″ – 58 21/32″

MST-TO21

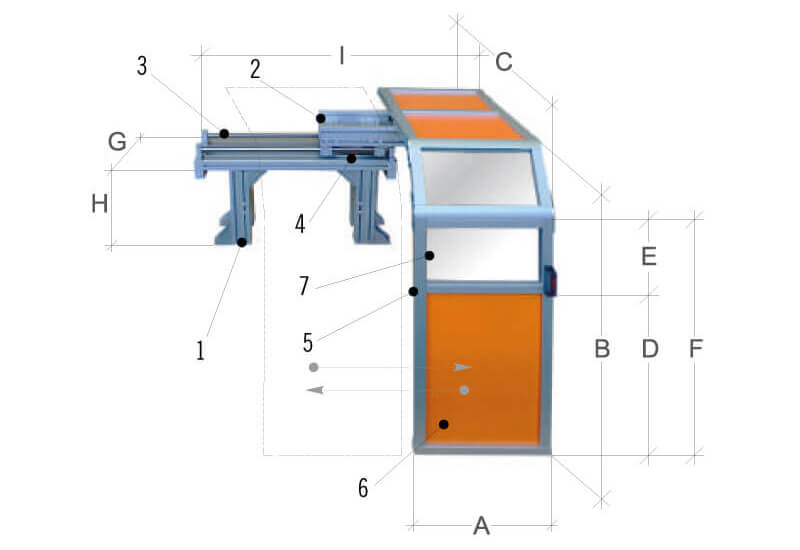

MST-TO21 Technical Data - Large Lathe Sliding Safety Guards

MST-TO22

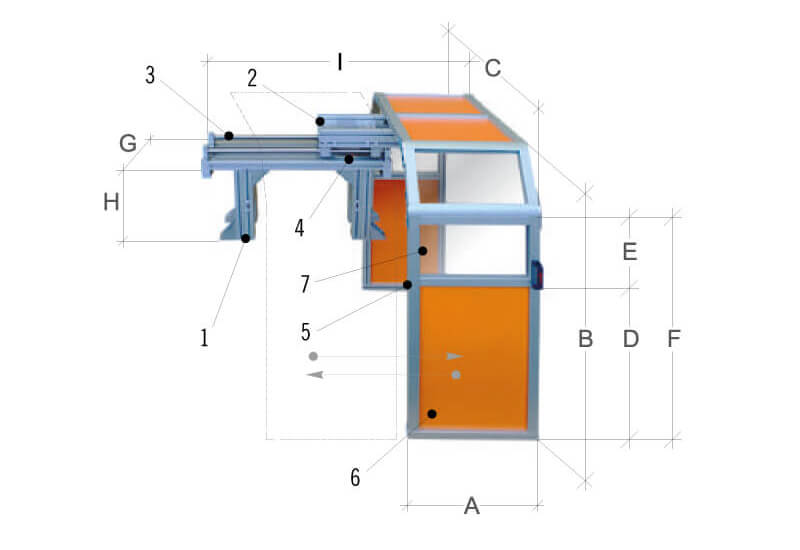

MST-TO22 Technical Data - Large Lathe Double Sided Sliding Safety Guard

Shipping Information

Special order : may incur an extended delivery time.
