Versatile and durable, this interlocked safety guard is designed for drills and similar machines. It features a double fixing system and is supported by an adjustable hexagonal arm.
Depending on your machine layout, it can be installed frontally (Model MST-TR10) or laterally (Model MST-TR11). Each version integrates a safety microswitch inside the rotation hinge, allowing the machine to start only when the guard is closed. The shield opens vertically to 60° / 120° / 180°, offering fast and unobstructed access to the work area.
How to order: First select your mounting type — MST-TR10 for frontal or MST-TR11 for lateral — then choose the appropriate size. Refer to the technical table below for model and size specifications.
The MST-TR10 / TR11 protects the operator from direct contact with rotating spindle parts and from the projection of chips, shavings, and lubricant-coolant. Its semi-hexagonal polycarbonate shield is supported by a widely adjustable hexagonal arm and equipped with an innovative vertical opening system at 60°, 120°, and 180° positions, ensuring quick and safe machine access.
Available in two versions :
The safety microswitch is integrated into the special rotation hinge that supports the shield, ensuring reliable electrical interlocking.
Compatibility tip: Verify your available space and A/B/C dimensions (see table below), and ensure a suitable mounting point is available on the front (MST-TR10) or side (MST-TR11) of your machine.
The MST-TR10 / MST-TR11 guard includes a safety microswitch integrated directly into the hinge and connected to the machine’s control circuit. When the guard is opened, the machine automatically stops and cannot restart until the guard is closed again and the circuit is reset according to the machine’s safety procedure. This ensures continuous operator protection and full compliance with OSHA / ANSI / ISO-EN / CE standards.

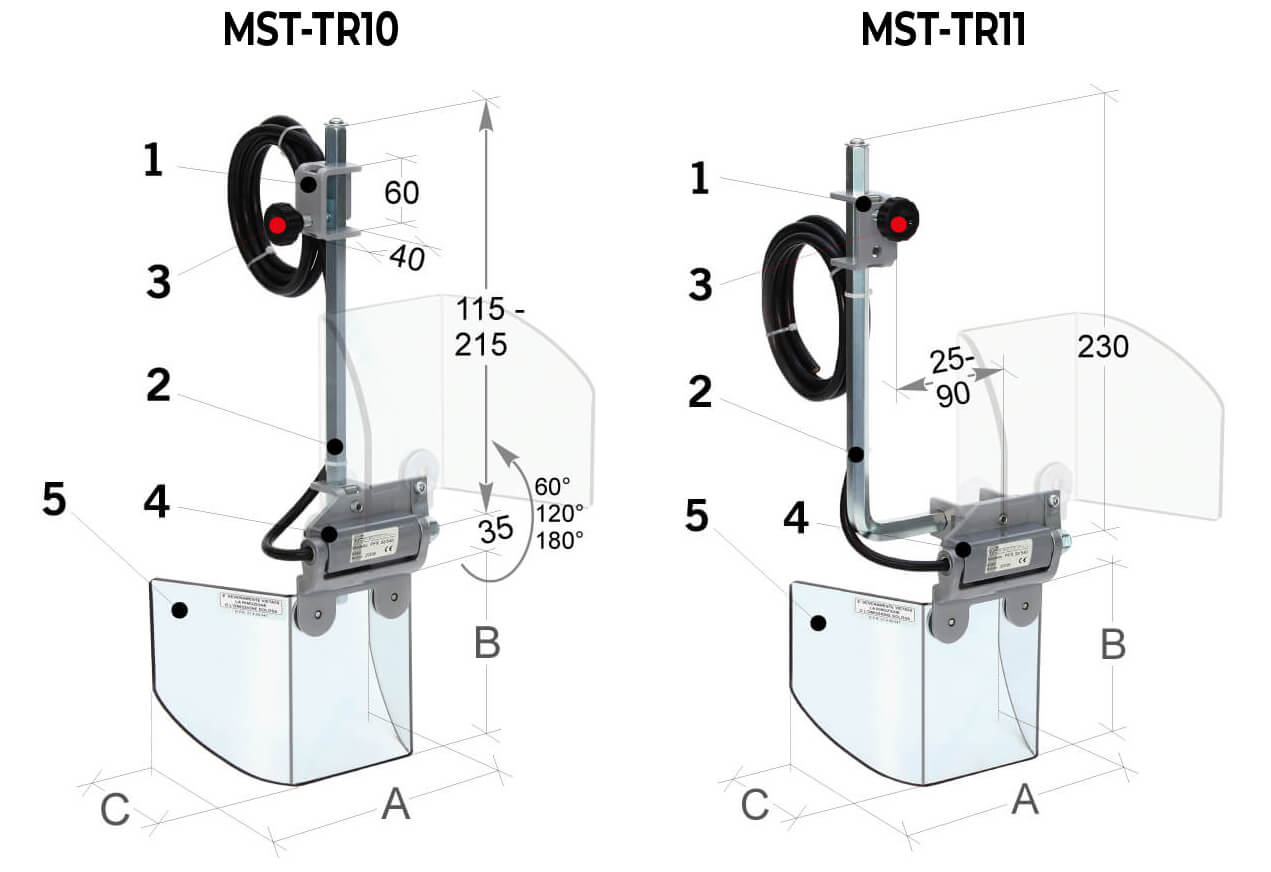

| CODE | Name | A | B | C | Spare Shield |
|---|---|---|---|---|---|
| MST-TR10/140 | Drill and Similar Machines Frontal Safety Guard/140 | 200 mm 7 7/8" |
140 mm 5 33/64" |
110 mm 4 21/64" |
MST-TR10/140/SS |
| MST-TR10/180 | Drill and Similar Machines Frontal Safety Guard/180 | 200 mm 7 7/8" |
180 mm 7 3/32" |
115 mm 4 17/32" |
MST-TR10/180/SS |
| MST-TR11/140 | Drill and Similar Machines Lateral Safety Guard/140 | 200 mm 7 7/8" |
140 mm 5 33/64" |
110 mm 4 21/64" |
MST-TR11/140/SS |
| MST-TR11/180 | Drill and Similar Machines Lateral Safety Guard/180 | 200 mm 7 7/8" |
180 mm 7 3/32" |
115 mm 4 17/32" |
MST-TR11/180/SS |
Choose MST-TR10 for frontal mounting and MST-TR11 for lateral mounting, depending on access and available space.
Yes. The hinge-integrated microswitch prevents the machine from starting while the guard is open..
Opening the guard instantly cuts the run command and prevents restart until the guard is closed and the circuit is reset.
No. Bypassing the interlock disables the safety function and violates compliance. Use the 60° / 120° / 180° opening positions for adjustments while the machine is stopped.
In stock : Yes
Lead Time to Ship : 3-5 Business Days
