Double Grinder and Tools Grinders Safety Guards

Description

Description of the Grinder Safety Guard

Protects the operator’s face from the projection of sparks and emery. The particular multi -adjustable hexagonal arms structure allows an easy anchorage on the most different structures, allowing use even on machines with grindstone in «overhang» position. The hinge that supports the protective shield is integrated with the safety microswitch.

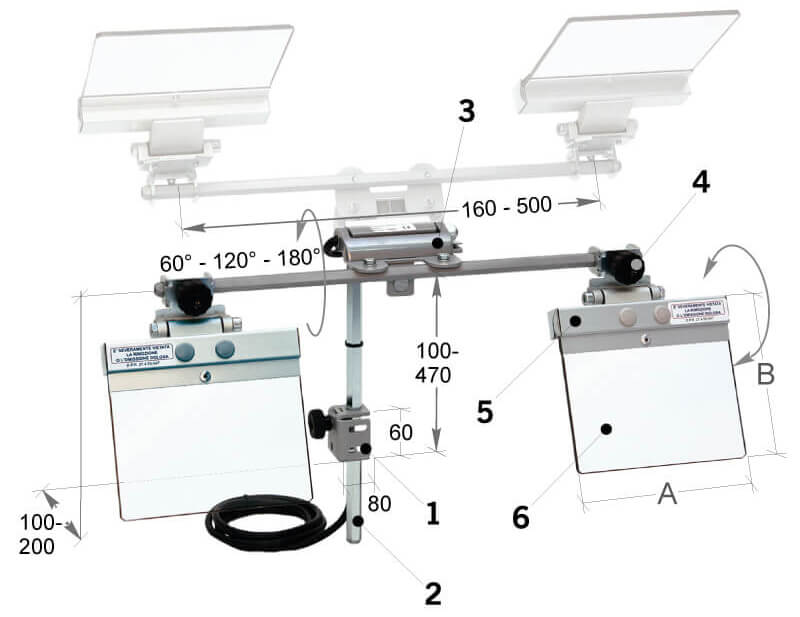

1. Angular stirrups - in pressed steel
2. Adjustable support arms - in steel hexagon
3. Shields group rotation hinge, integrated with safety microswitch - n. 2 NC contacts - electrically interlocked
4. Articulated clamp for the horizontal and vertical adjustment of the shield
5. Shield support border - in aluminum profile
6. Shield - in plastic schockproof material

Interlock Switch Specifications
Contact arrangement: 2 NC
Switching ability: 4 A @ 24 V AC, 4 A @ 120/250 V AC
2 A @ 24 V DC, .4 A @ 120 V DC, 3 A @ 250 V DC
Mechanical life: 1 million switching cycles
Enclosure rating: IP 67

Safety Guard's Technical Specifications

CODE	Name	A	B	Spare Shield
MST-MA 11/112	Double Grinder and Tools Grinders Safety Guards/112	160 mm 6 19/64"	145 mm 5 45/64"	MST-MA11/112/SC</td
